Dosatron D3WL2VF dosing pump for accurate addition of supplements and disinfectants to drinking water systems without electricity

Delivery time 2-3 days

in stock

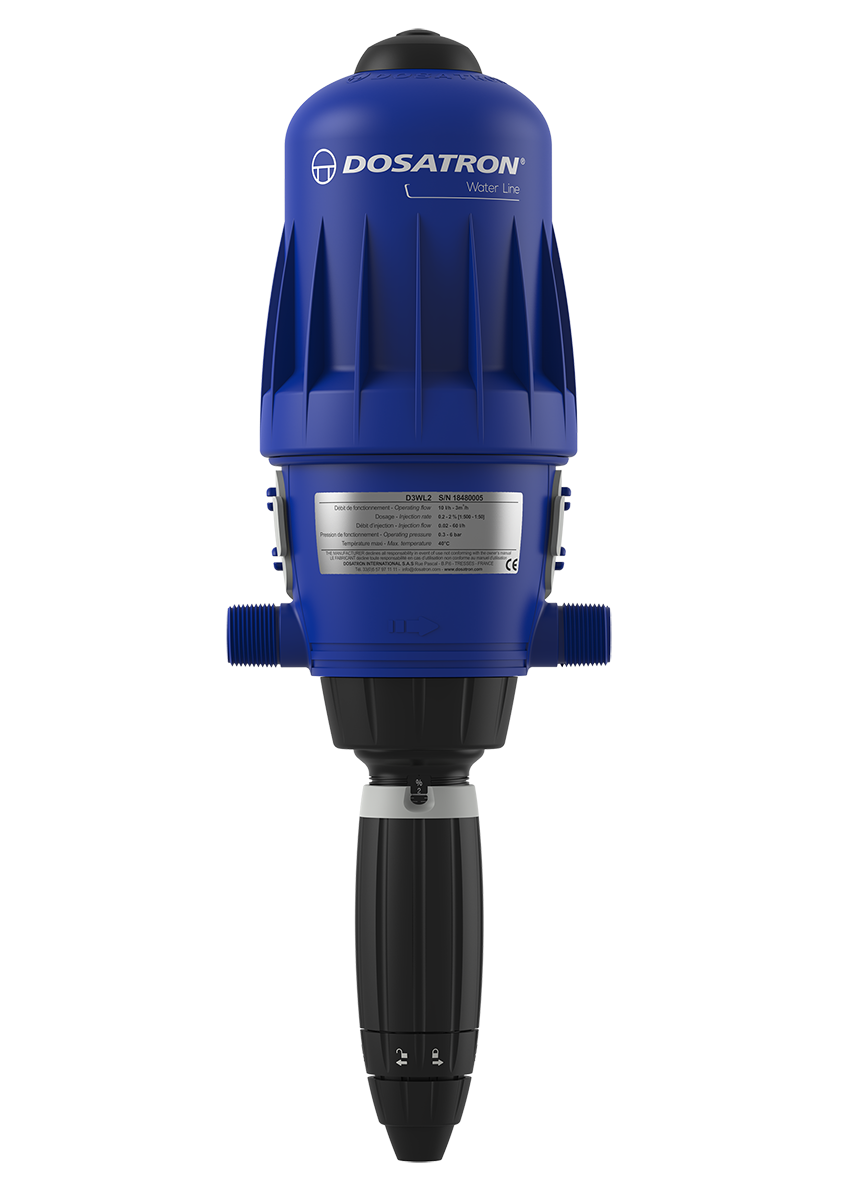

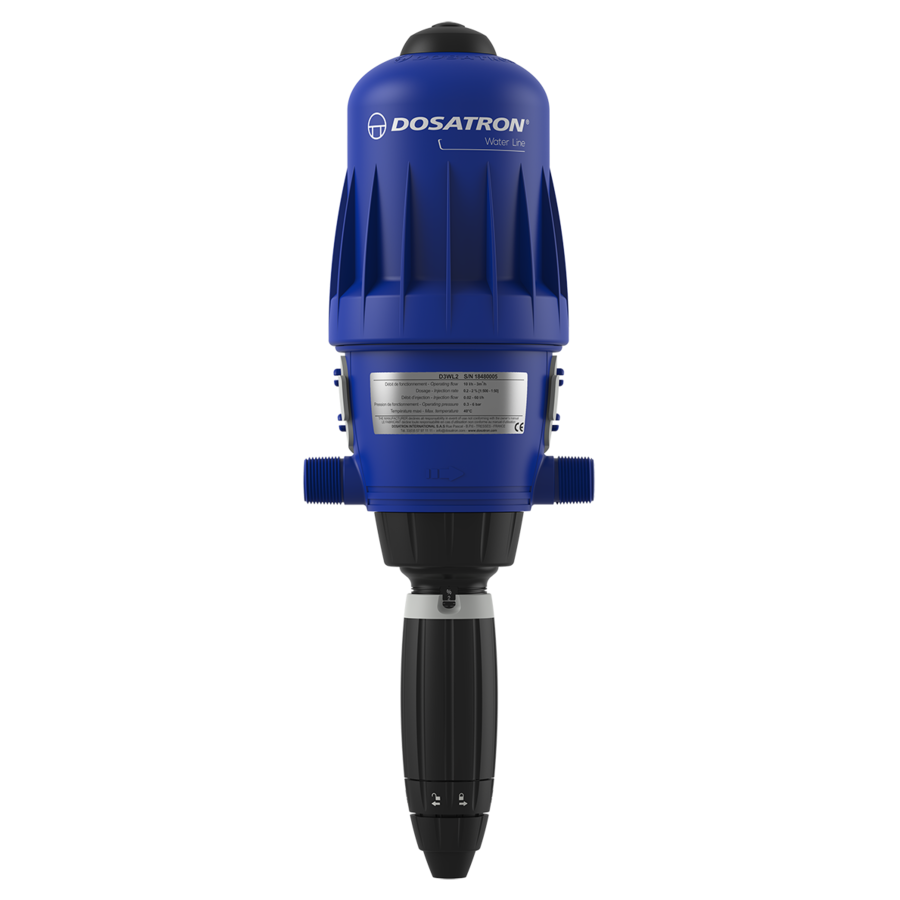

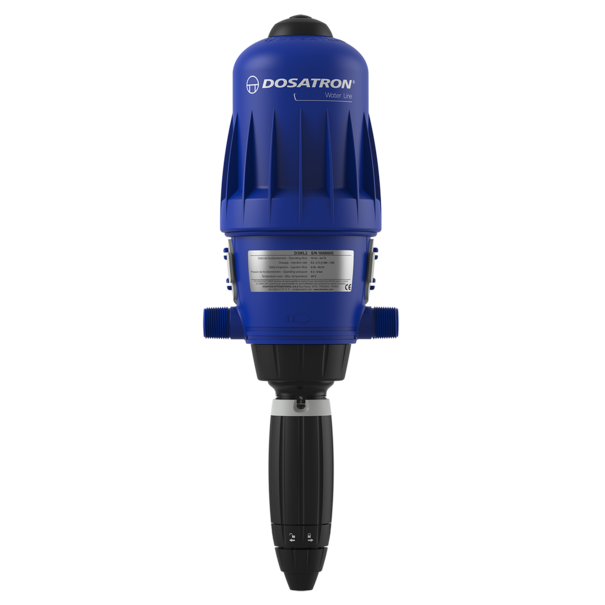

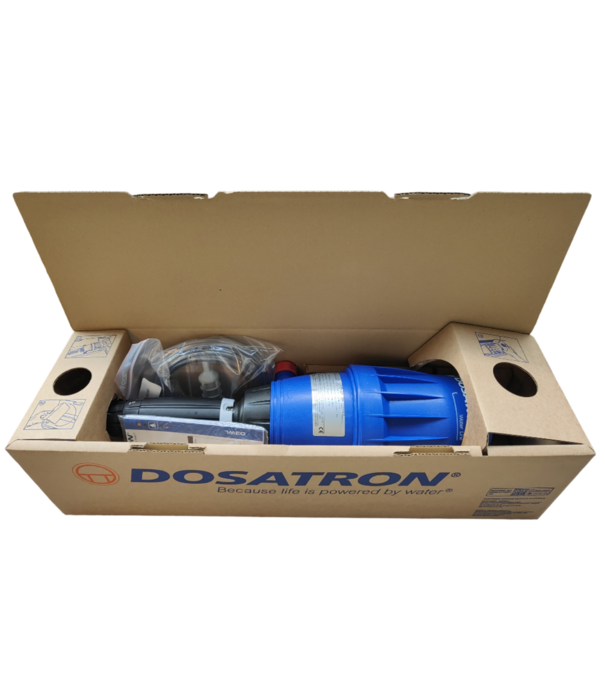

Dosatron D3WL2VF dosing pump for accurate addition of supplements and disinfectants to drinking water systems without electricity-1

Enlarge image

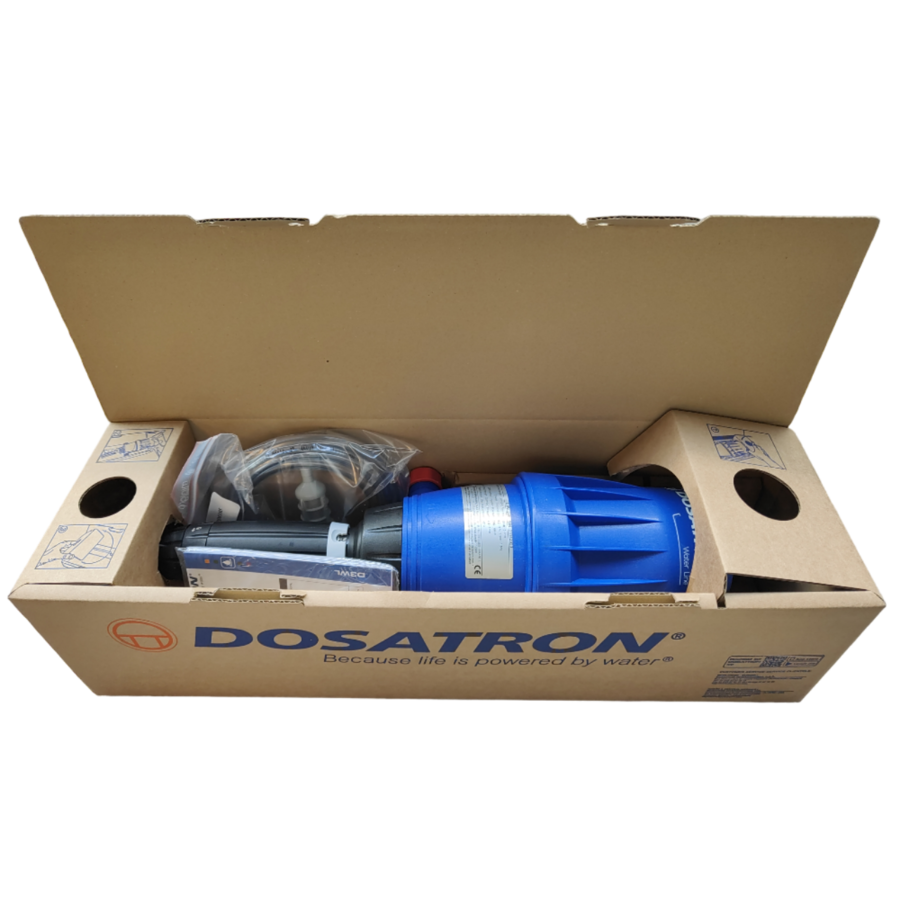

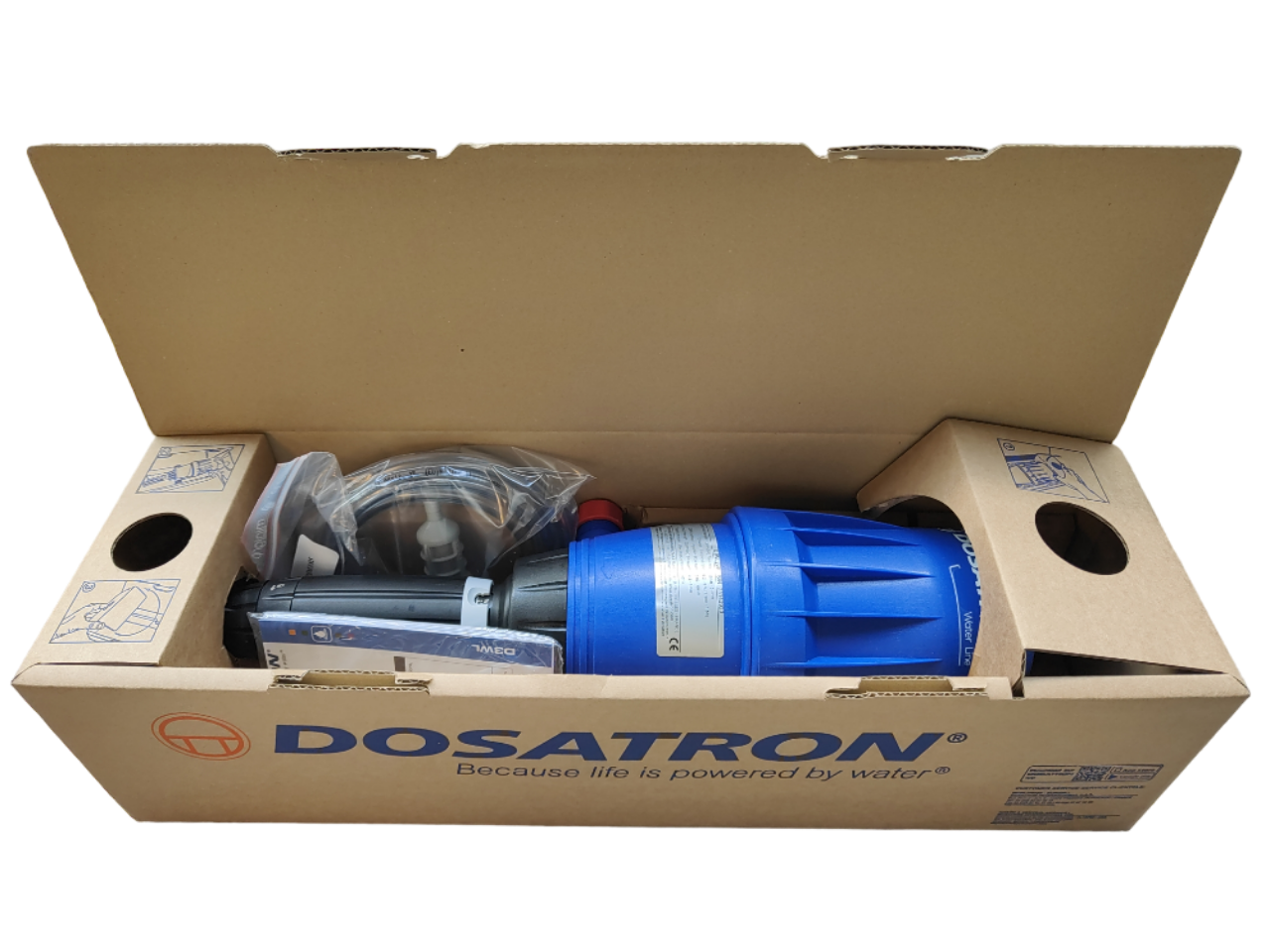

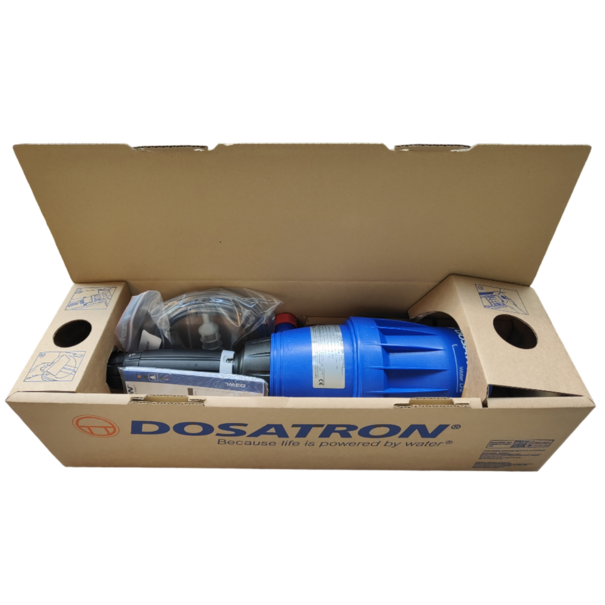

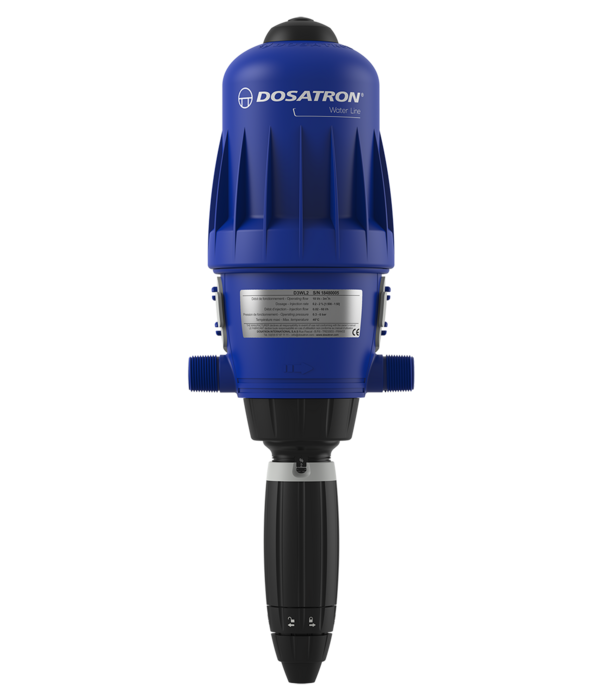

Dosatron D3WL2VF dosing pump for accurate addition of supplements and disinfectants to drinking water systems without electricity-2

Enlarge image

Image 1 / 2

thumb-Dosatron D3WL2VF dosing pump for accurate addition of supplements and disinfectants to drinking water systems without electricity-1

thumb-Dosatron D3WL2VF dosing pump for accurate addition of supplements and disinfectants to drinking water systems without electricity-2

Dosatron D3WL2VF dosing pump for accurate addition of supplements and disinfectants to drinking water systems without electricity

in stock

Delivery time 2-3 days

Available in store: Check availability

The Dosatron D3WL2VF is a reliable dosing pump for accurately mixing products into drinking water. Operates without electricity, features a polypropylene housing and acid-resistant seals. No metal parts in the motor. Ideal for use with Virkon S.

€930,00

Snelle Levering

Eerlijke prijzen

Snelle Levering

Eerlijke prijzen

Description
The D3WL range of dispensers meets the dosing needs for flow rates from 10 to 3,000 l/h.
It is characterized by:
- An optimized design
- A polypropylene pump casing
- Highly ergonomic dosage adjustment
- The availability of micro and macro dosages - One injection at the output
- A choice of dosage seals according to the use of alkaline or acidic products.
D3WL2VF

3m³/h - 0.2 - 2%

14 GPM - 1:500 - 1:50

0.3 - 6 bar

4.3 - 85 ps

----

Example of calculation in drinking water VIRKON S with Dosatron D3WL2VF::

A. DATA CONSUMED WATER & FINAL DOSE VIRKON S:

· Average daily volume of water in the building: 2000 l of water drunk/day
· Maximum final concentration of Virkon S: 1g/liter of water drunk, in this calculation we take 0,5g/liter (0.05%)

B. DOSATRON DOSER MODEL & ADJUSTMENT:

· Dosatron D3WL2 VF adjustment (0.2% to 2%): 0,5% (1/200)

C. MOTHER SOLUTION TO PREPARE:

· Weight of Virkon H20 for 24 h = 2000 l/day x 1g/l: 1kg Virkon™S powder
· Volume of stock solution consumed per 24 h = 2000 liters / 200 (0.5%): 10 liters/day os stock solution
· Concentration stock solution Virkon S = 1 g / l x 200: 100 g/l in stock solution
· For 10 days of stock solution multiply the result by 10: 100 liters water with 10 kg ofVirkon™S

----
